Product Description
Sprayer Assembly Machine
Product Specifications and Machine Layout
GRK-T880-NS

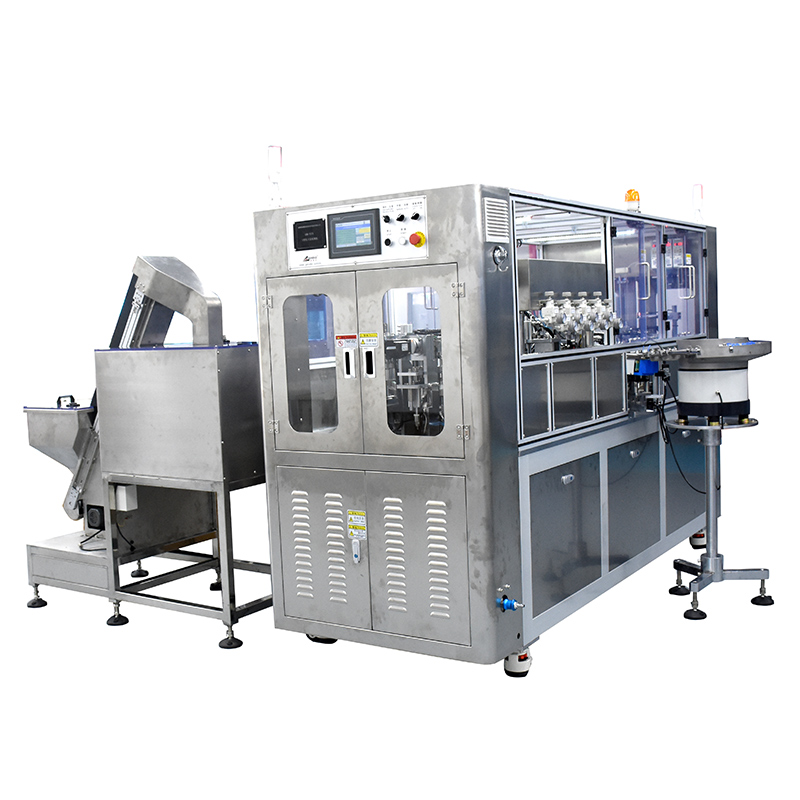

Nasal Sprayer Assembly Machine (2 up)
High Performance & Productivity
Speed up to 3600 pcs/ hr
CE Certified

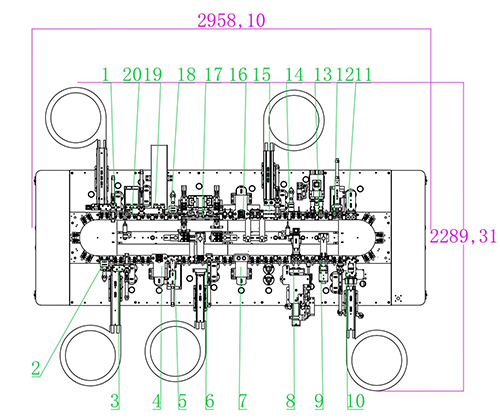

Machine Layout
Assembly Steps
1. Pump engine supply from vibration bowl
2. Pump Engine check
3. Closure supply
4. Closure pressing & check
5. Defect part ejection
6. Actuator supply
7. Actuator pressing & check
8. Nozzle cover fitting
9. Nozzle cover check
10. Dust cap supply
11. Dust cap pressing & check
12. Defect part ejection
13. Part orientation
14. Part check
15. Gasket supply
16. Gasket pressing & check
17. Tube insert
18. Tube check
19. Finish product discharge
20. Defect part ejection
Product Specifications
Technical Specifications:
Voltage: 380V,50Hz,3 Phases
Power:4.0KW(KVA)
Weight:2500kgs
Air Pressure: 0.5-0.8MPa
Air Consumption: 1.5m³/min
Vibration Bowl & Hopper Capacities:
Bigger Part: 3000-4000pcs
Smaller Part: 4000-5000pcs
Part supply to vibration bowl through material loader
Dimensions Specifications:
Size: L3.00m xW2.30m xH1.80m
Noise Level:<75DB
Machine Performance:
3000-3600pcs/hr
Key Features
All plastic parts feed automatically with vibrator bowls through material loader
Part to be assembled with high precision mechanism
NC parts will be detected and rejected automatically
HMI touch screen and PLC control interface
