Mist Sprayer Assembly Machine



Product Specifications and Machine Layout

GRK-T880-NS

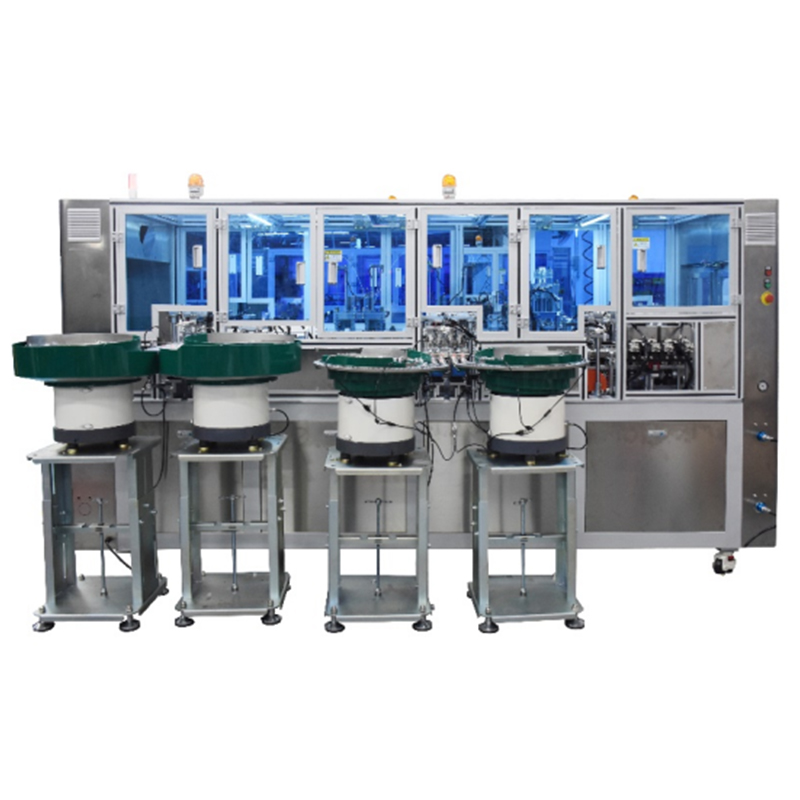

Nasal Sprayer Assembly Machine (2 up)

High Performance & Productivity

Speed up to 3600 pcs/ hr

CE Certified

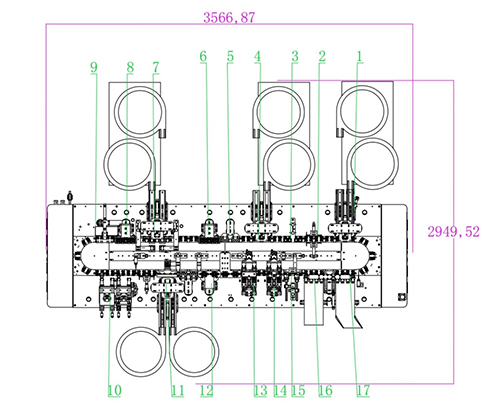

Machine Layout





Assembly Steps

1. Pump engine supply from vibration bowl (4 up)

2. Pump engine check

3. Pump engine pressing

4. Closure supply

5. Closure check

6. Closure pressing

7. Actuator supply

8. Actuator pressing & check

9. Defect part ejection

10. Part orientation

11. Gasket supply

12. Gasket pressing & check

13. Tube insert A

14. Tube insert B

15. Tube check

16. Finish product discharge

17. Defect part ejection



Product Specifications

Technical Specifications:

Voltage: 380V,50Hz,3 Phases

Power:4.0KW(KVA)

Weight:2500kgs

Air Pressure: 0.5-0.8MPa

Air Consumption: 1.5m³/min



Vibration Bowl & Hopper Capacities:

Bigger Part: 3000-4000pcs

Smaller Part: 4000-5000pcs

Part supply to vibration bowl through material loader



Dimensions Specifications:

Size: L3.60m xW3.00m xH1.80m

Noise Level:<75DB



Machine Performance:

6600-7000pcs/hr



Key Features

All plastic parts feed automatically with vibrator bowls through material loader

Part  to be assembled with high precision mechanism

NC parts will be detected and rejected automatically

HMI touch screen and PLC control interface
