GRK-Y880-LP

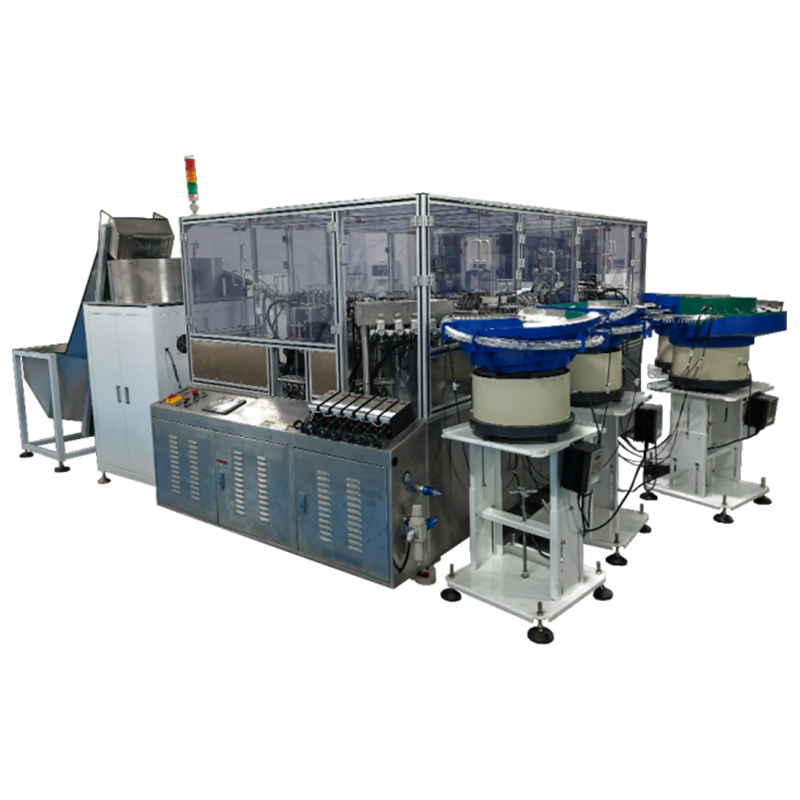

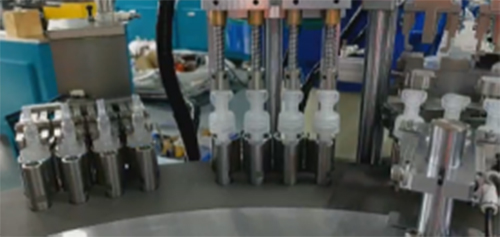

Lotion Pump Assembly Machine (4 up)
High Performance & Productivity
Speed up to 7000 pcs/hr
CE Certified

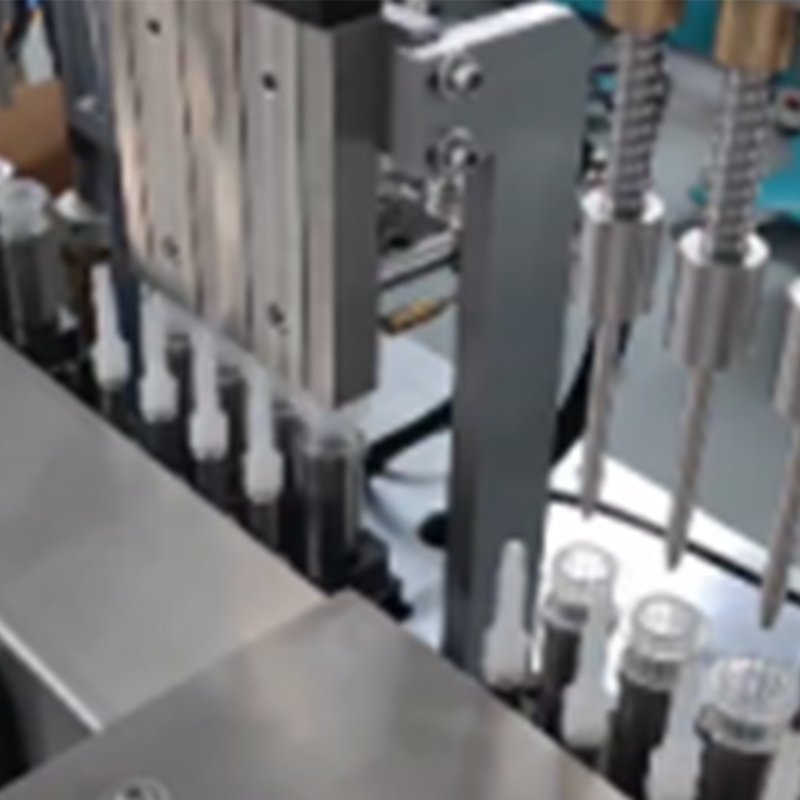

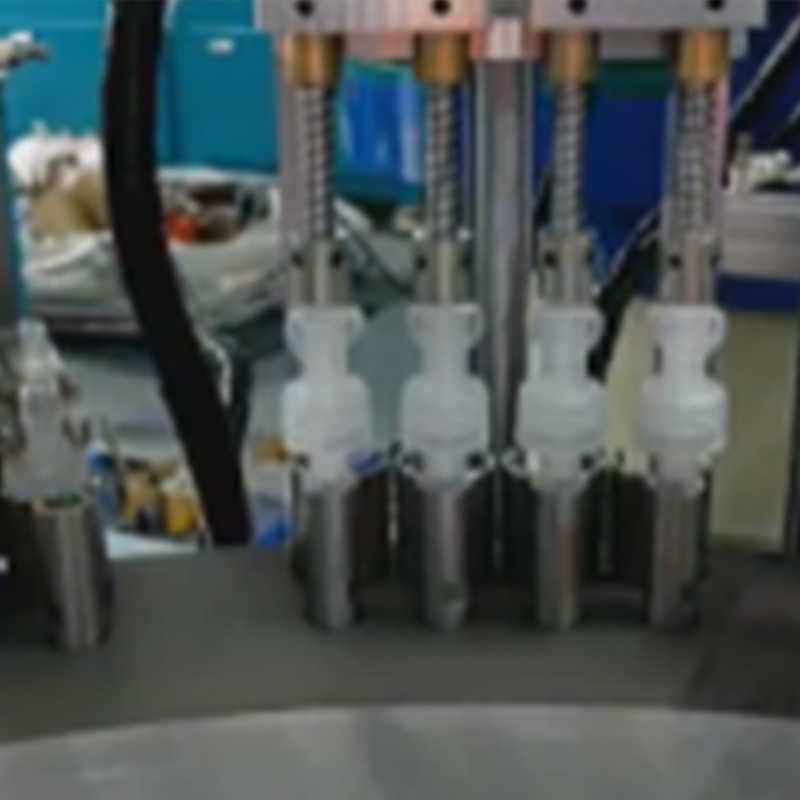

The lotion pump assembly machine can be used for different sizes of raw parts with minor changeover and adjustment.

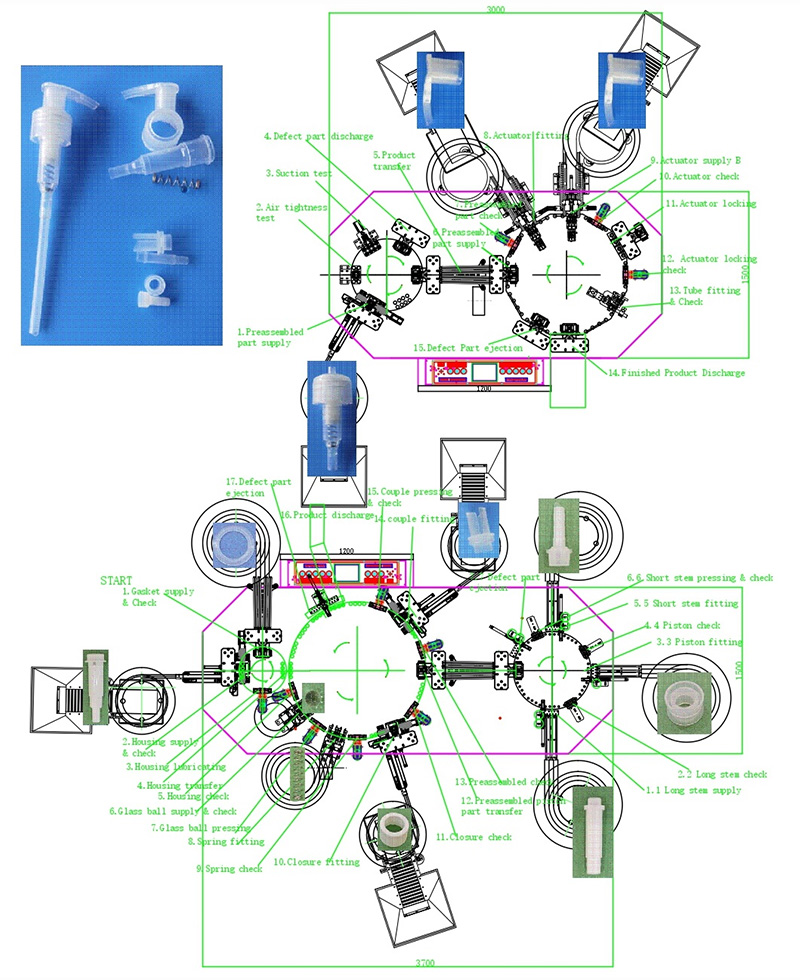

Machine Layout
Pump Engine Machine Layout
Assembly Steps: (Left side rotary table )
1. Gasket supply & check from vibration bowl (4 up)
2. Housing supply & check
3. Housing lubricating
4. Housing transfer
5. Housing check
6. Glass ball supply & check
7. Glass ball pressing
8. Spring fitting
9. Spring check
10. Closure fitting
11. Closure check
12. Preassemble part transfer and fit into housing ( 2nd right side table)
13. Preassemble part check
14. Couple fitting
15. Couple pressing & check
16. Product transfer to 2nd machine
17. Defect part ejection
Assembly Steps: (Right side rotary table)
1.1 Long stem supply from vibration bowl (4 up)
2.2 Long stem check
3.3 Piston fitting
4.4 Piston check
5.5 Short stem fitting
6.6 Short stem press fit & check
7.7 Defect part ejection

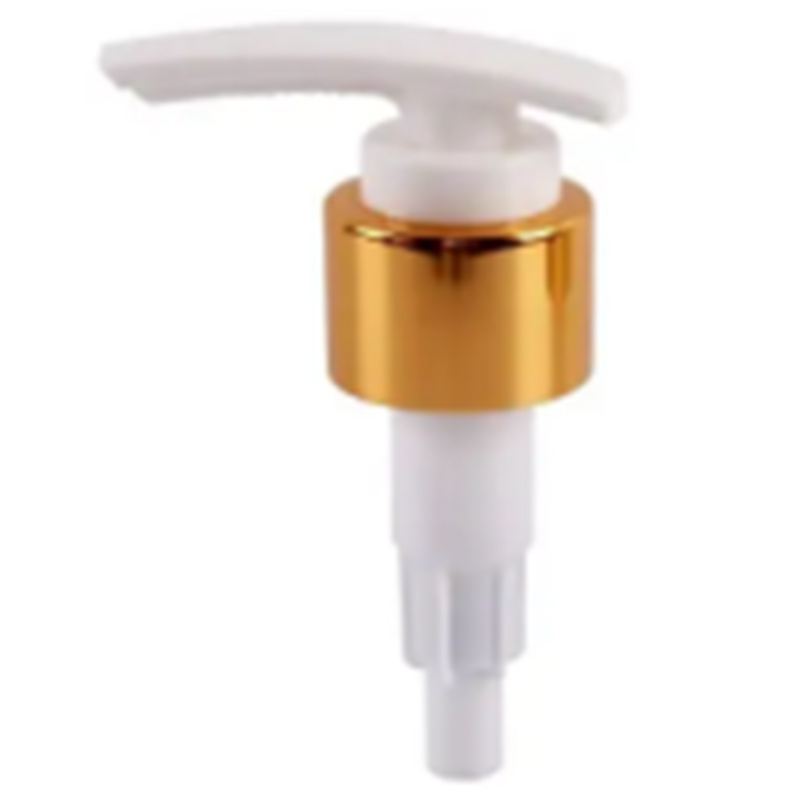

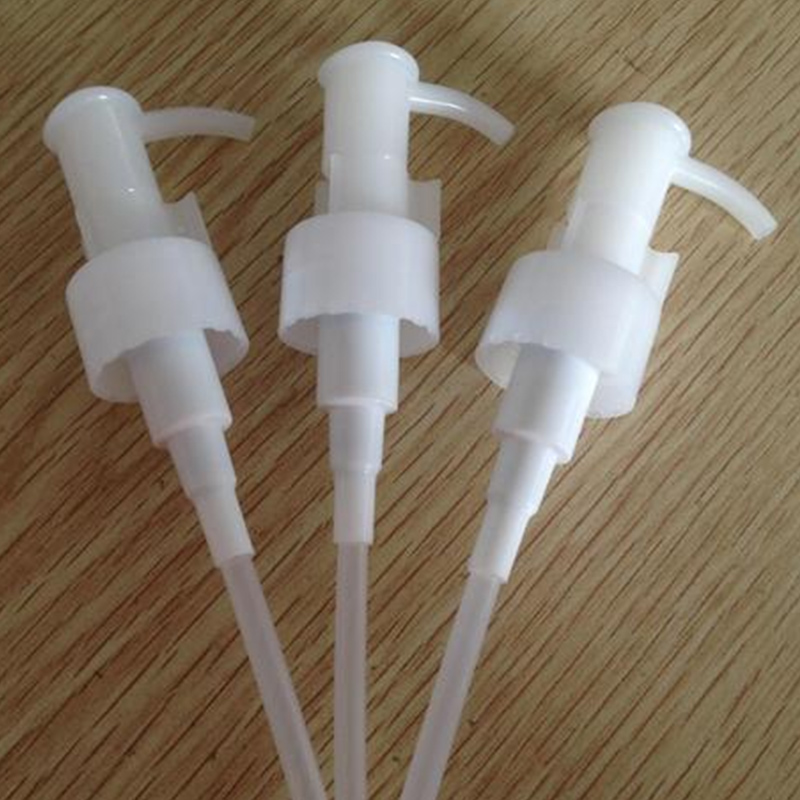

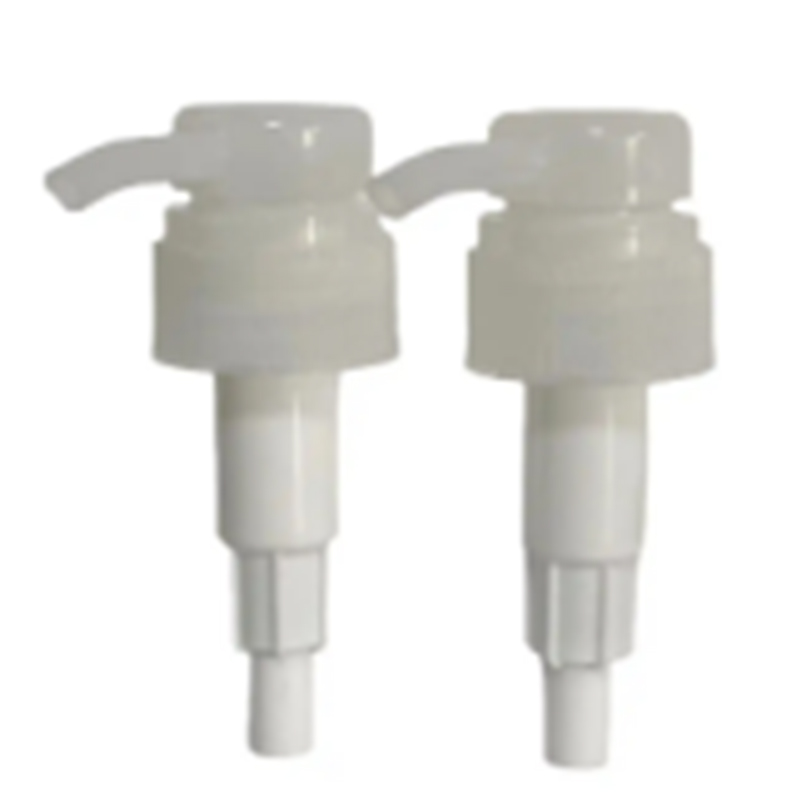

Complete Product: Machine Layout
Assembly Steps:
1. Preassembled part transfer (Pump engine supply) (4 up)
2. Air tightness check
3. Suction check
4. Defect part ejection
5. Product transfer
6. Preassembled part supply
7. Preassembled part check
8. Actuator fitting A
9. Actuator fitting B
10. Actuator check
11. Actuator locking
12. Actuator locking check
13. Tube fitting & check
14. Finish product discharge
15. Defect part ejection
Product Specifications
Technical Specifications:
Voltage: 380V,50Hz,3 Phases
Power:8.0KW(KVA)
Weight:4600kgs
Air Pressure: 0.5-0.8MPa
Air Consumption: 2.0m³/min
Vibration Bowl & Hopper Capacities:
Bigger Part: 2000-3000pcs
Smaller Part: 3000-4000pcs
Part supply to vibration bowl through material loader
Dimensions Specifications:
Size: L3.70m xW1.50m xH1.80m
L3.70mxW1.50m xH1.80m
Noise Level:<75DB
Machine Performance:
6600-7000pcs/hr
Key Features
All plastic parts feed automatically with vibrator bowls through material loader
Part to be assembled with high precision mechanism
NC parts will be detected and rejected automatically
HMI touch screen and PLC control interface
