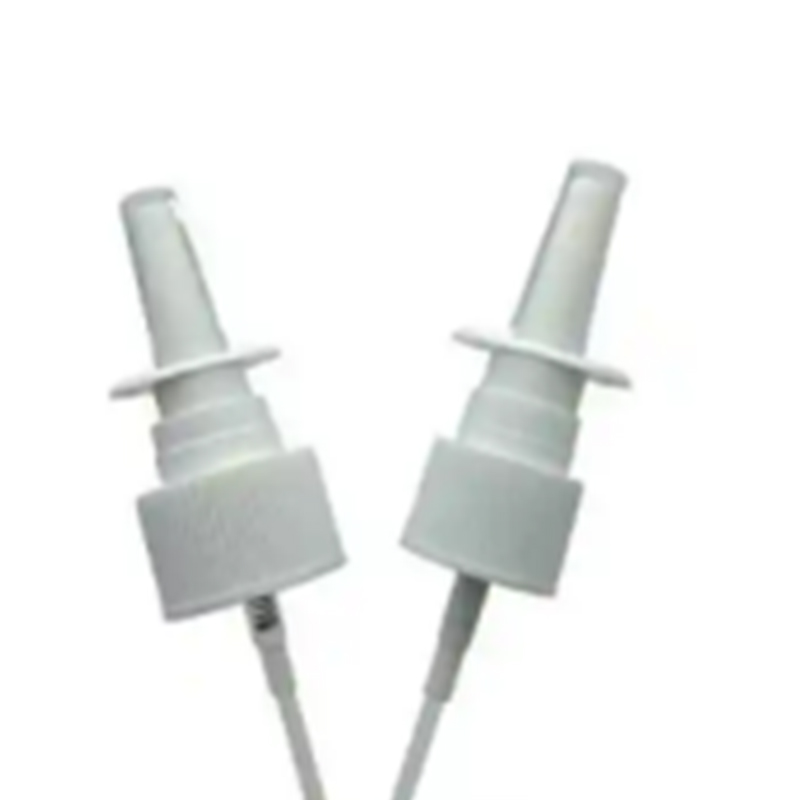

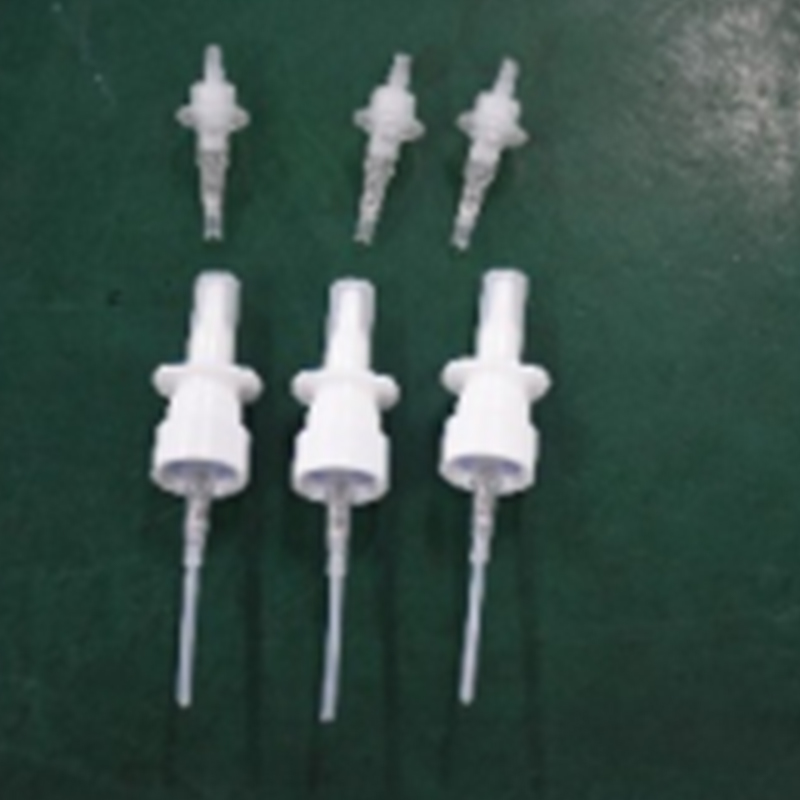

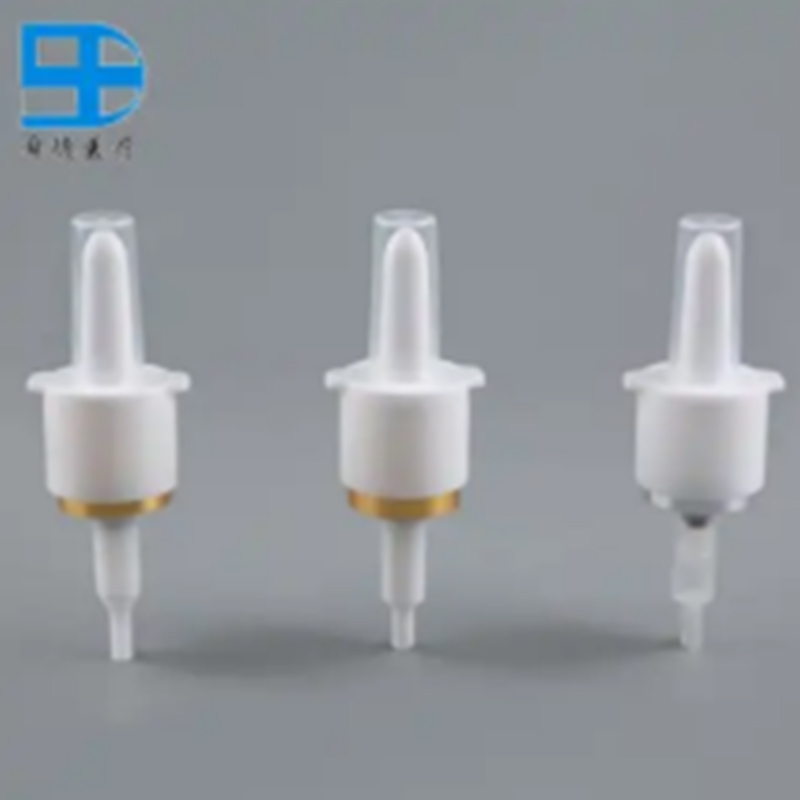

Nasal Sprayer Assembly Machine

Product Specifications and Machine Layout

GRK-T880-NS

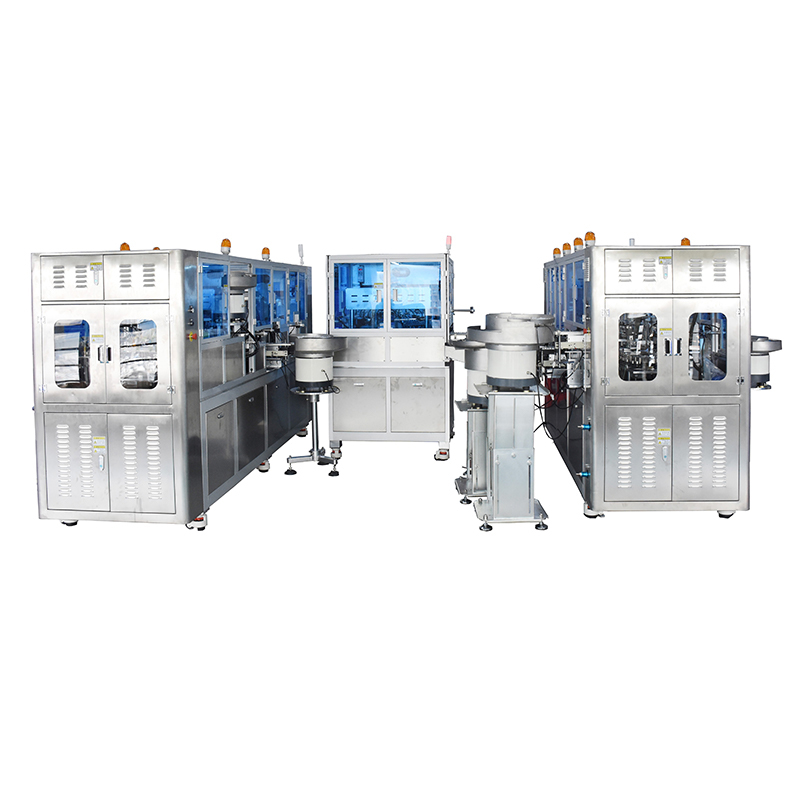

Nasal Sprayer Assembly Machine (2 up)

High Performance & Productivity

Speed up to 3600 pcs/ hr

CE Certified

Machine Layout

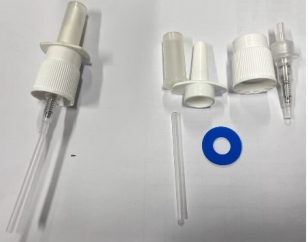

Assembly Steps

1. Pump engine supply from vibration bowl

2. Pump Engine check

3. Closure supply

4. Closure pressing & check

5. Actuator supply

6. Actuator pressing & check

7. Dust cap fitting

8. Dust cap pressing & check

9. Part orientation

10. Part check

11. Gasket supply

12. Gasket pressing & check

13. Tube insert

14. Tube check

15. Finish product discharge

16. Defect part ejection

Product Specifications

Technical Specifications:

Voltage: 380V,50Hz,3 Phases

Power:4.0KW(KVA)

Weight:2000kgs

Air Pressure: 0.5-0.8MPa

Air Consumption: 1.5m³/min

Vibration Bowl & Hopper Capacities:

Bigger Part: 3000-4000pcs

Smaller Part: 4000-5000pcs

Part supply to vibration bowl through material loader

Dimensions Specifications:

Size: L2.40m xW2.40m xH1.80m

Noise Level:<75DB

Machine Performance:

3000-3600pcs/hr

Key Features

All plastic parts feed automatically with vibrator bowls through material loader

Part  to be assembled with high precision mechanism

NC parts will be detected and rejected automatically

HMI touch screen and PLC control interface

Oval shape table

Camera sensor

Press fit mechanism
