Oral Sprayer Assembly and Filling Machine





Product Specifications and Machine Layout

GRK-T880-OSF

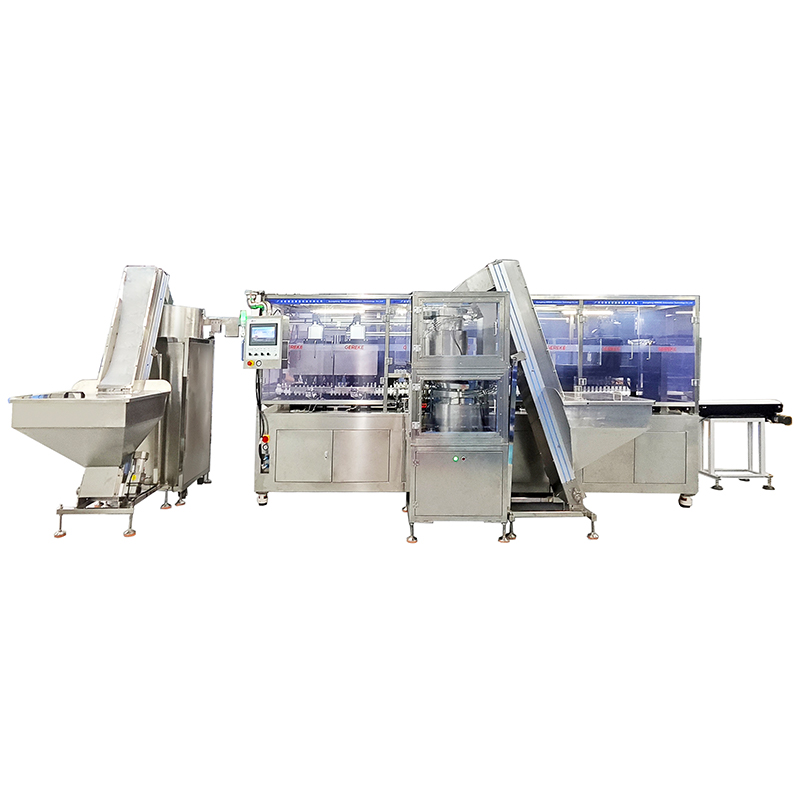

Oral Sprayer Assembly And Filling Machine

High Performance & Productivity

Speed up to 3600 pcs/ hr

CE Certified

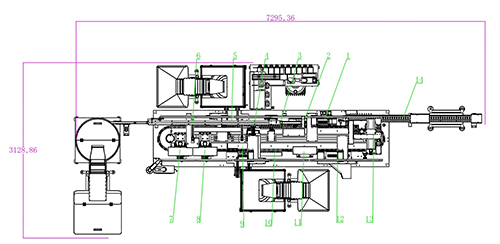

Machine Layout





Assembly Steps

1. Bottle supply from vibration bowl

2. Bottel check

3. Reagent filling

4. Liquid content check

5. Sprayer engine capping

6. Sprayer engine check

7. Sealing point climping A

8. Sealing point climping B

9. Dust cap supply

10. Dust cap check

11. Dust cap pressing

12. Defect part ejection

13. Finish product discharge

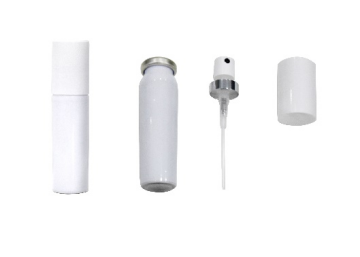

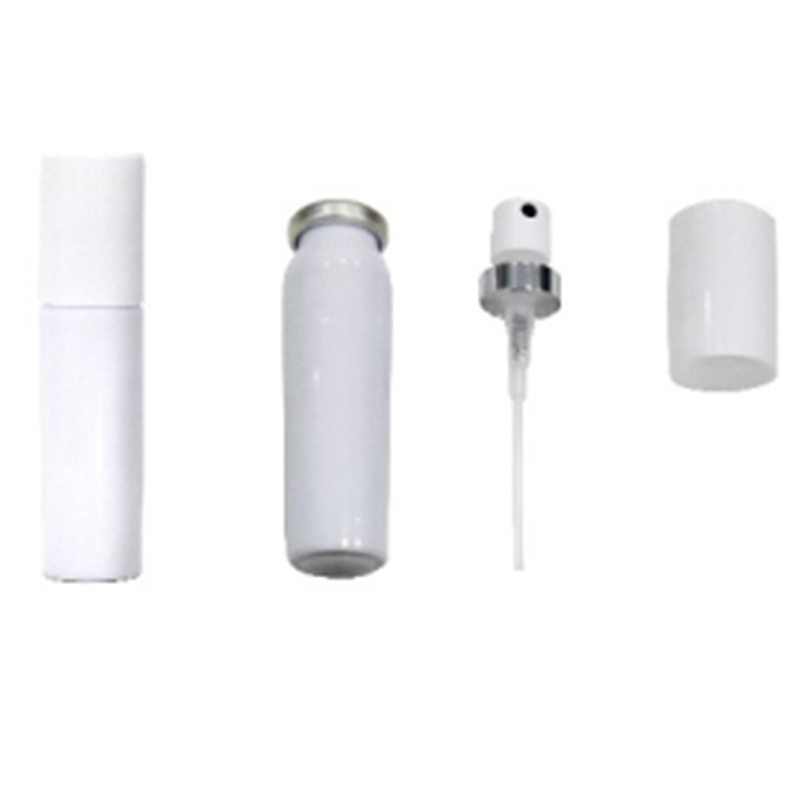

Product Specifications

Technical Specifications:

Voltage: 380V,50Hz,3 Phases

Power:4.0KW(KVA)

Weight:3000kgs

Air Pressure: 0.5-0.8MPa

Air Consumption: 1.5m³/min



Vibration Bowl & Hopper Capacities:

Bigger Part: 3000-4000pcs

Smaller Part: 4000-5000pcs

Part supply to vibration bowl through material loader



Dimensions Specifications:

Size: L7.20m xW3.00m xH1.80m

Noise Level:<75DB



Machine Performance:

3000-3600pcs/hr



Key Features

All plastic parts feed automatically with vibrator bowls through material loader

Part  to be assembled with high precision mechanism

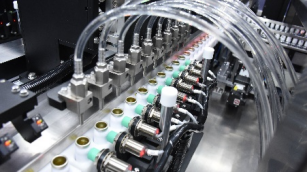

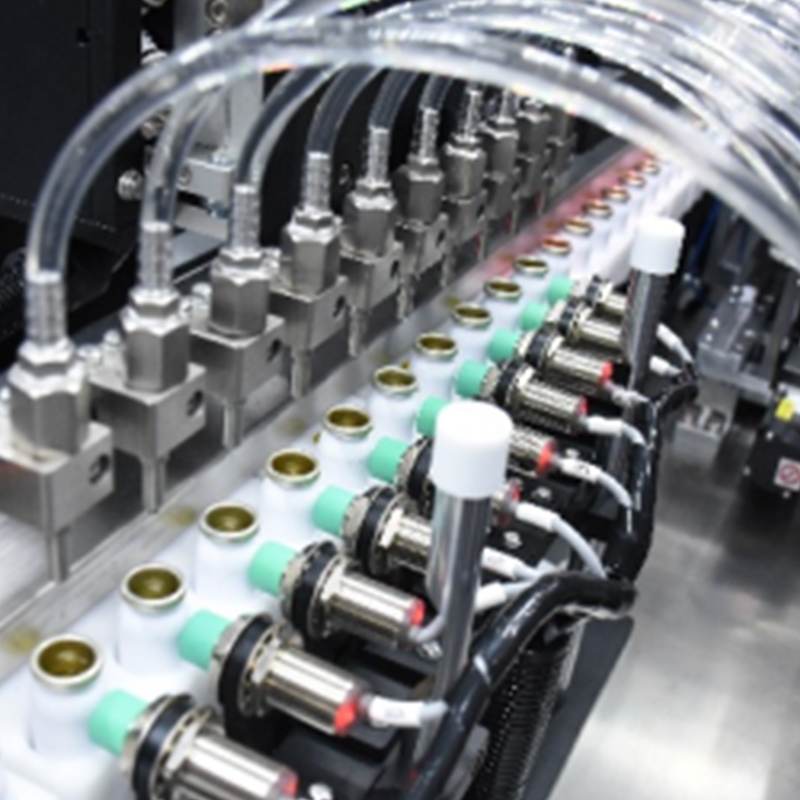

Liquid fill with high precision hibar pump

NC parts will be detected and rejected automatically

HMI touch screen and PLC control interface
