Product Description
Assembly Machine
Product Specifications and Machine Layout
GRK-L380-LNC

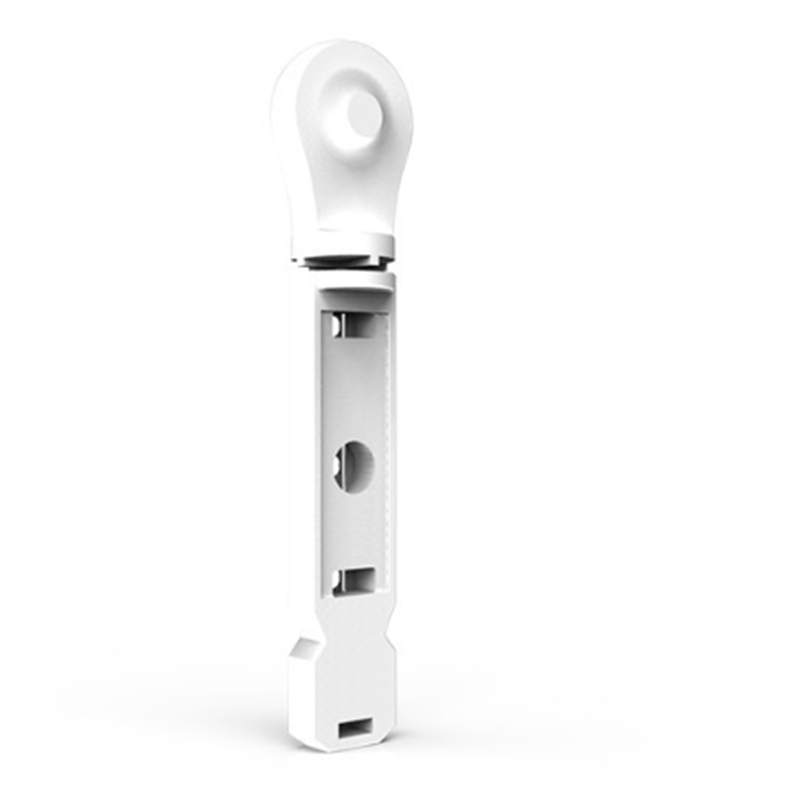

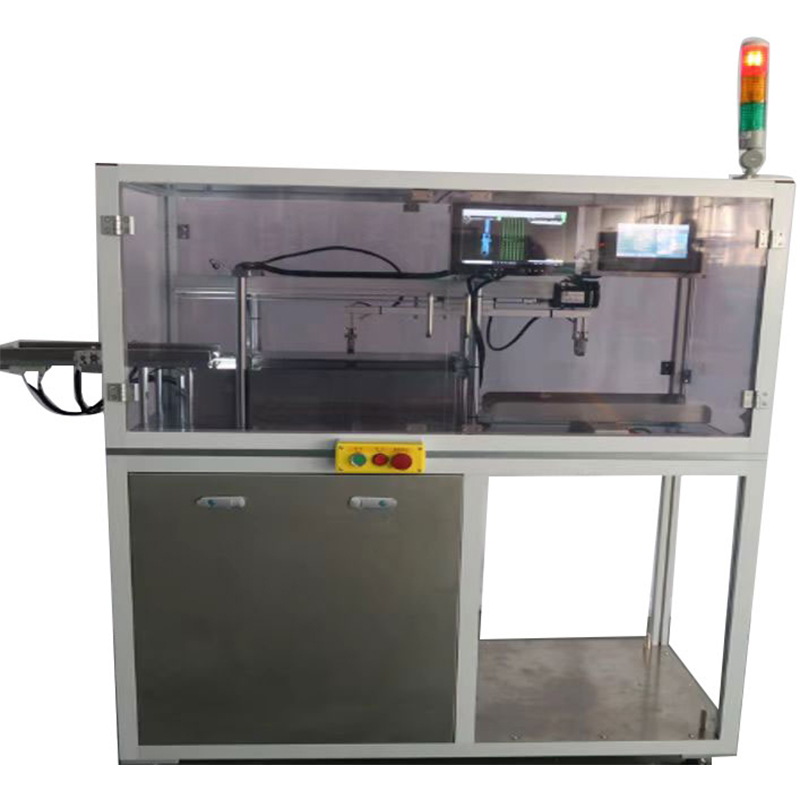

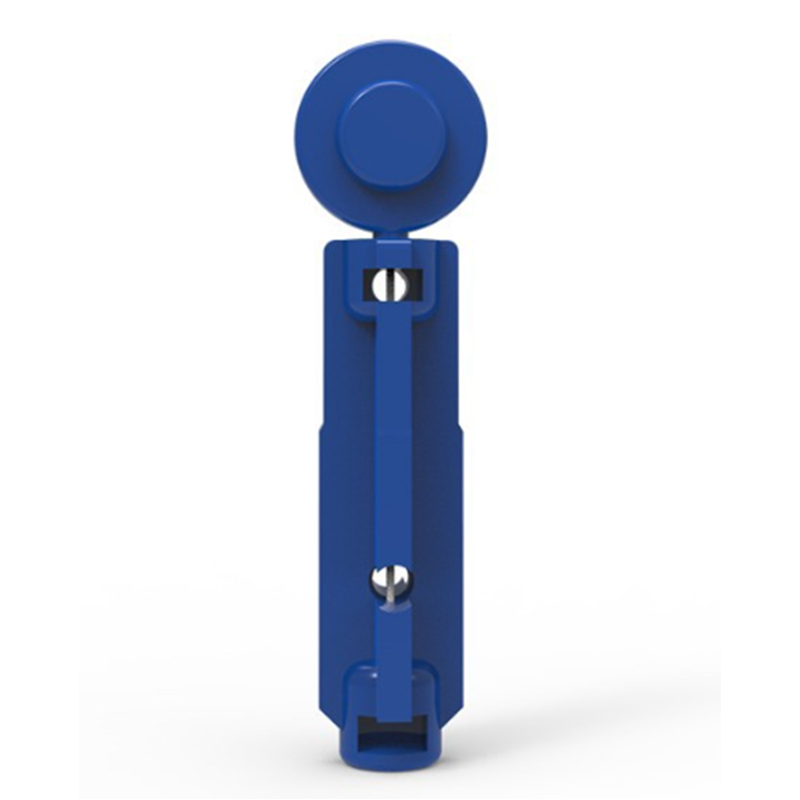

Disposable Lancet and Needle Cutting Machine
Machine Layout
Assembly Steps:

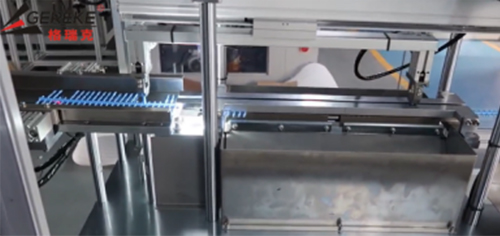

1. Lancet feed manually on feeding conveyor
2. Cutting and finished part collection process
3. Runner collection station
Product Specifications
Technical Specifications:
Voltage: 220V,50Hz,1Phase
Power:1.1KW(KVA)
Weight:500kgs
Air Pressure: 0.5-0.6MPa
Air Consumption: 0.5m³/min
Dimensions Specifications:
Size: L1.60m xW0.82m xH1.50m
Noise Level:<75DB
Machine Performance:
5 sets/min
Key Features
Automatic pick up needle from injection molding machine

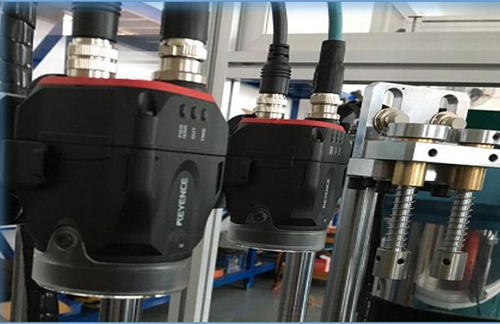

NC parts will be detected by camera sensor and rejected automatically
HMI touch screen and PLC control interface
