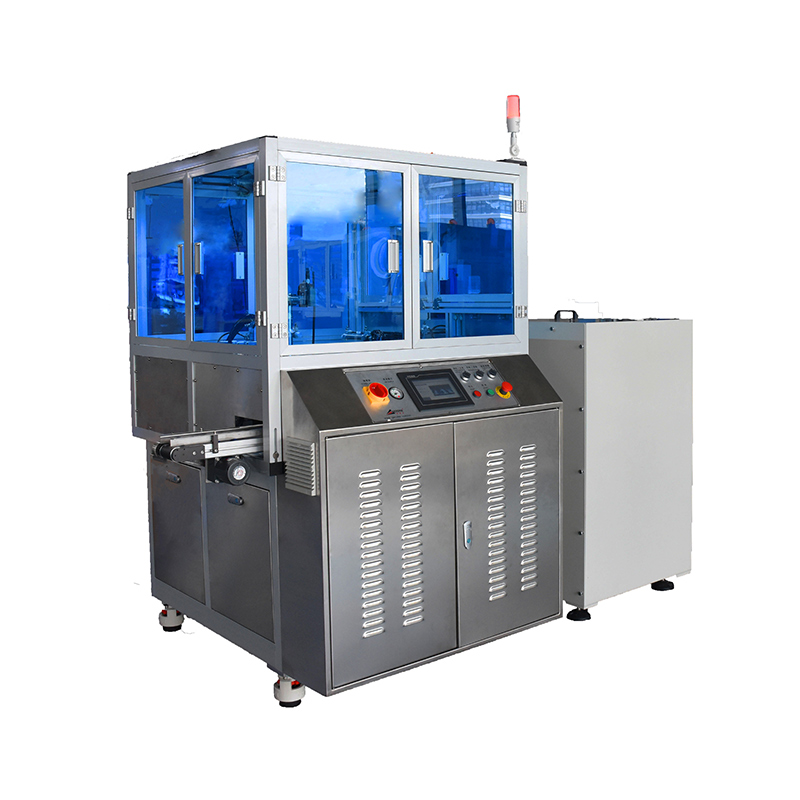

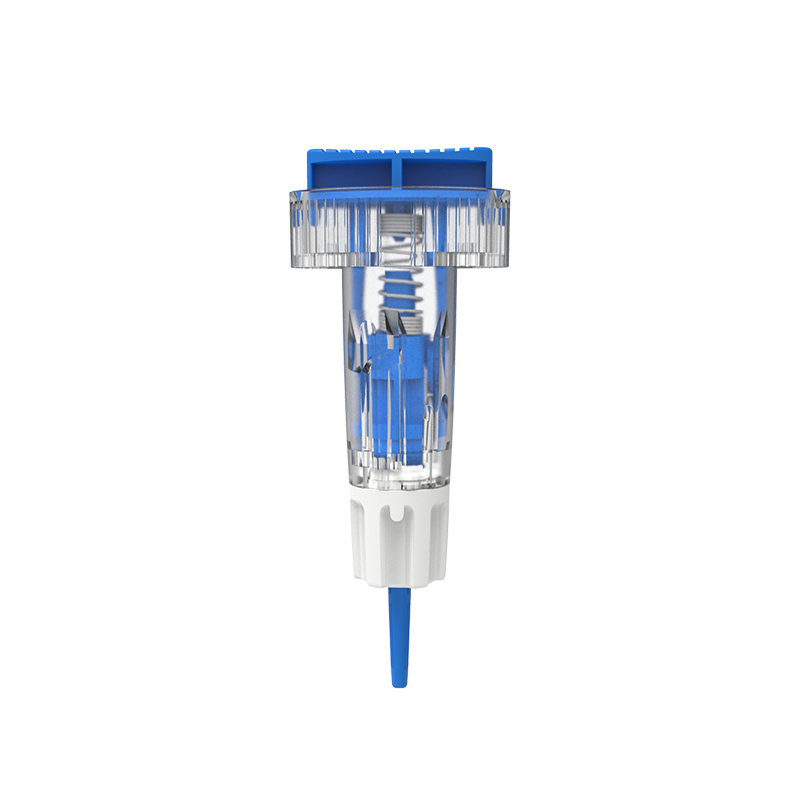

Button Activated Safety Lancet Assembly Machine

Product Specifications and Machine Layout

GRK-Y580-BL

Button Activated Safety Lancet Assembly Machine (4 up)

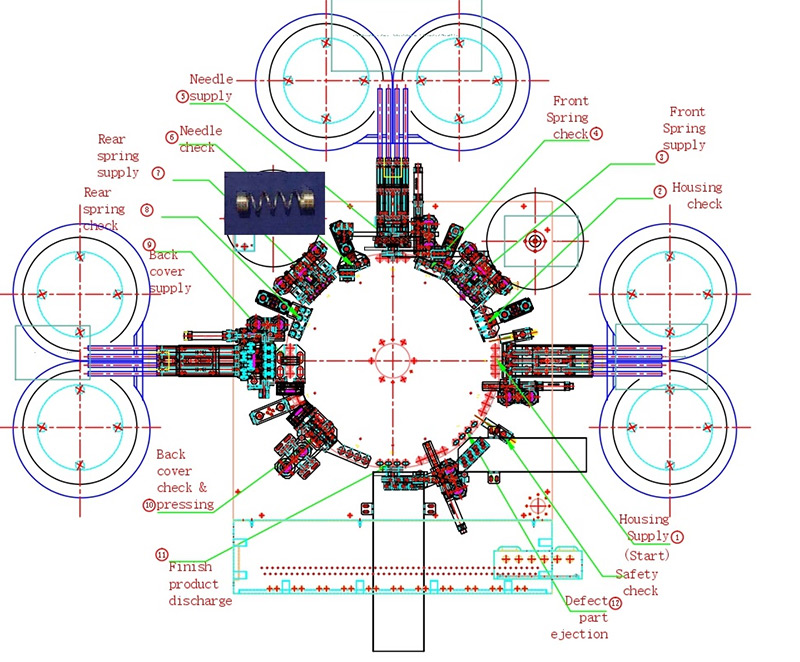

Machine Layout

Assembly Steps:

1. Housing supply from vibration bowl

2. Housing check

3. Front spring supply

4. Front spring check

5. Needle supply

6. Needle check (Camera sensor)

7. Rear spring supply

8. Rear spring check

9. Back cover supply

10. Back cover check and pressing

11. Finish product discharge

12. Defect part ejection

Product Specifications

Technical Specifications:

Voltage: 380V,50Hz,3 Phases

Power:1.5KW(KVA)

Weight:1500kgs

Air Pressure: 0.5-0.6MPa

Air Consumption: 1.0m³/min

Vibration Bowl & Hopper Capacities:

Bigger Part: 2000-3000pcs

Smaller Part: 3000-4000pcs

Part supply to vibration bowl through material loader

Dimensions Specifications:

Size: L2.50m xW1.30m xH1.80m

Noise Level:<75DB

Machine Performance:

6000-6600pcs/hr

Key Features

All plastic parts feed automatically with vibrator bowls through material loader

Part  to be assembled with high precision mechanism

NC parts will be detected and rejected automatically

HMI touch screen and PLC control interface

Rotary table

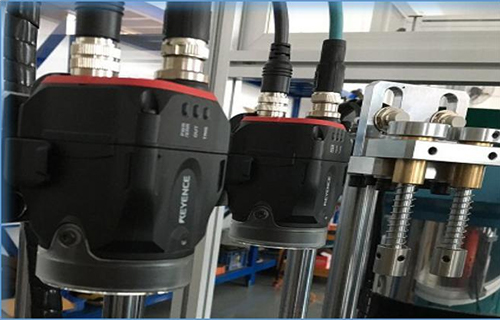

Camera sensor

Press fit mechanism
